Healthcare network design — clinical-grade wireless for hospitals

Spectralink Versity 96/97 and Vocera Smartbadge handsets both require ‑65 dBm primary coverage with 25 dB SNR across the full clinical footprint — including bathrooms, stairwells, elevators, and med rooms — plus 20–25% cell overlap at the ‑67 dBm contour so the handset sees at least two APs everywhere.

Roam time must stay under 50 ms, which in practice means 802.11r Fast BSS Transition on the SSID, or OKC as a fallback for older badge firmware.

Packet error rate under 1% sustained and jitter under 30 ms are the voice-quality floor.

We validate against the Spectralink VIEW certification program and with a live handset during onsite survey, not just predictive modeling.

HIPAA 45 CFR §164.312 does not prescribe SSID architecture, but the access-control and transmission-security requirements push every serious healthcare network design to dedicated SSIDs on dedicated VLANs per trust boundary: clinical/PHI, biomed, corporate, and guest. The December 2024 NPRM strengthening the Security Rule — with a final rule expected in 2026 — adds explicit MFA, encryption-in-transit-and-at-rest, annual risk-assessment documentation, and network-segmentation mandates for ePHI-handling systems.

Guest is isolated in a DMZ with no route to internal segments.

Clinical SSIDs run WPA3-Enterprise with 802.1X certificate-based authentication (EAP-TLS) against the hospital’s internal CA.

It is architecturally possible to run one SSID with role-based VLAN assignment, but most covered entities find the audit story is easier with discrete SSIDs.

Onsite AP-on-a-Stick validation happens during off-hours where feasible, and under HTM/biomed and nursing escort during census. We do not enter a patient room that is occupied without unit-level authorization. Many floors can be walked from the corridor and doorway with reasonable predictive-model validation; rooms that require in-room measurement are scheduled around discharges.

The survey plan is coordinated with infection prevention, HTM, nursing leadership, and facilities before day one.

Survey equipment (Ekahau Sidekick 2, tripod, test handsets) is wiped per hospital-standard protocols between units, and any contact with high-touch surfaces is mitigated per the facility’s infection control policy.

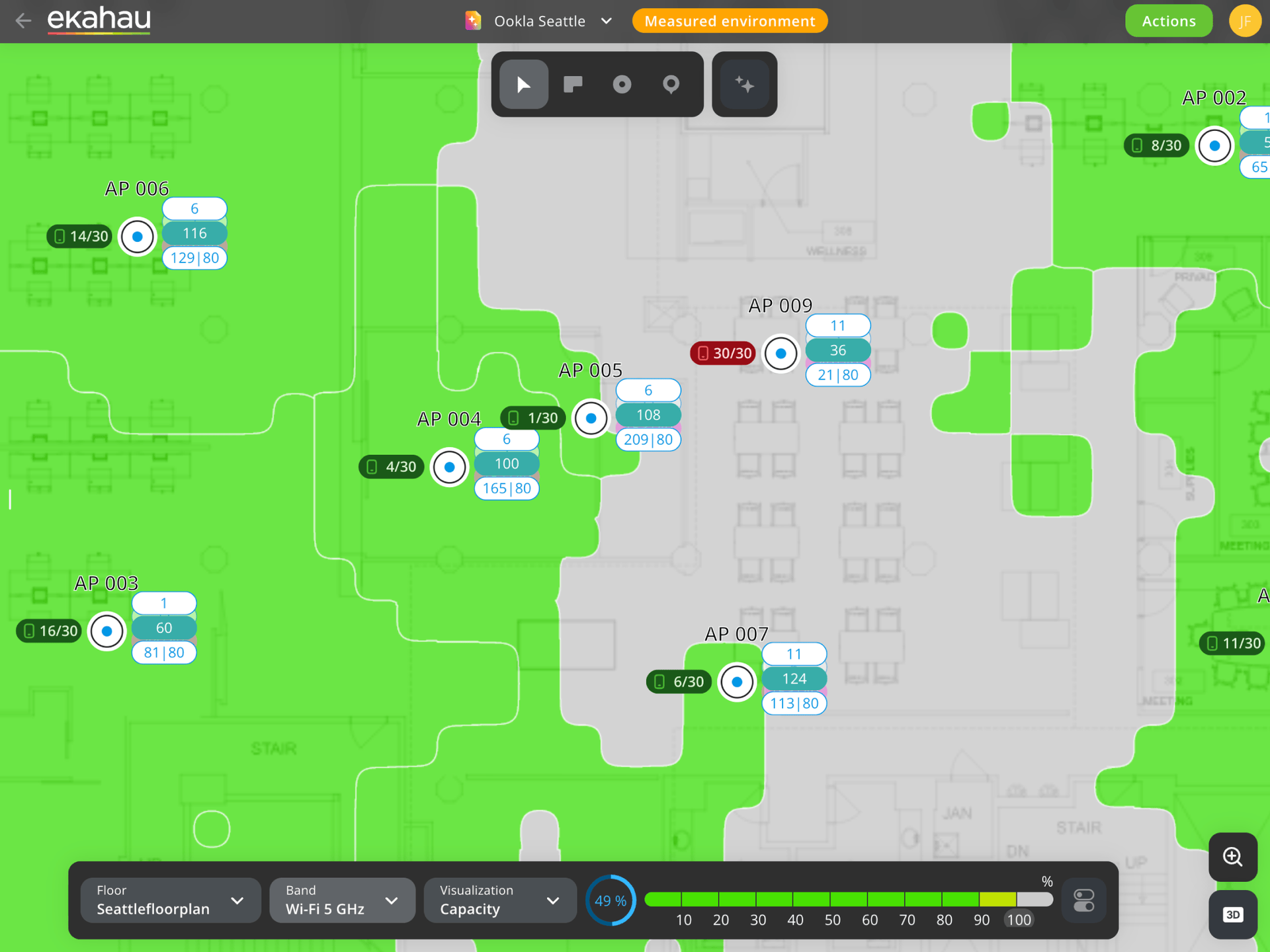

Starting point: 1 AP per 2,000–2,500 sq ft on a patient floor, with perimeter placement for RTLS. Final count comes out of the Ekahau AI Pro predictive model against your specific wall materials, clinical voice fleet, biomed 2.4 GHz legacy devices, and RTLS accuracy target.

A 30,000 sq ft med-surg floor typically lands between 12 and 16 APs; ICU and perioperative floors run denser (1 AP per 1,500–2,000 sq ft) because of equipment attenuation and the RTLS accuracy requirements on anesthesia carts, infusion pumps, and patient monitors.

Freestanding imaging centers with lead-lined suites require in-suite AP placement, which raises the per-square-foot count further.

Yes, with caveats. Wi-Fi 7 (802.11be) adds MLO (Multi-Link Operation), 320 MHz channels on 6 GHz, 4K-QAM, and preamble puncturing. In a hospital the practical near-term gains are MLO redundancy and faster roam, not 320 MHz throughput —

320 MHz has only three non-overlapping channels in the US, and indoor 6 GHz APs run under LPI (Low Power Indoor) power limits that constrain cell size to approximately ‑5 dBm/MHz PSD indoors.

The clinical handset fleet (Spectralink Versity, Vocera Smartbadge, Ascom Myco 4) is Wi-Fi 6 or 6E at best, so Wi-Fi 7 APs operate mixed-mode for voice until a full handset refresh catches up.

The refresh path is real; the expectations need to be set correctly, and the MLO redundancy gain for Epic Rover and RTLS session persistence is the design value.

Every engagement. Healthcare Technology Management (HTM) owns the biomed Wi-Fi fleet — telemetry monitors (GE, Philips, Mindray), IV pumps (Baxter, BD, ICU Medical), workstations-on-wheels, glucose meters, specialty modalities — and the RF design has to accommodate their device inventory.

We inventory the biomed Wi-Fi fleet with HTM before the AP count is finalized, validate 2.4 GHz coverage at ‑70 dBm for any legacy 802.11n or 802.11b/g devices, and route any change that touches the biomed VLAN through HTM change control.

Governance committee approvals are integrated into the phasing plan — 72-hour or two-week change windows per campus, not engineer-preferred scheduling.

For the Wi-Fi layer of RTLS — verifying that three or more APs at ‑75 dBm are visible from every measurement point, and that perimeter placement is clean — Ekahau AI Pro with a Sidekick 2 is the right tool. It produces the AP-visibility heatmaps and secondary-coverage reports that trilateration-grade location requires.

We integrate with CenTrak (wall-mount IR+RF hybrid and 433 MHz active-RFID), Stanley Healthcare AeroScout (Wi-Fi RFID trilateration), AiRISTA (hybrid BLE + Wi-Fi), and the CenTrak active-RFID platform where sub-room accuracy is required.

The RTLS application layer itself (tag provisioning, event streaming to Epic or Cerner, analytics) is validated by the RTLS vendor’s tag placement test on top of our RF deliverable.

Every engagement is priced as a fixed-fee SOW — we do not bill hourly. Scope variables that drive cost: licensed-bed count, number of buildings, clinical footprint square footage, construction type (post-1994 concrete shear walls, lead-lined imaging suites, CMU-block long-term-care, standard drywall), required survey type (predictive only, AP-on-a-Stick, or combined predictive-plus-validation), clinical voice fleet complexity (single-vendor vs. mixed Spectralink/Vocera/Ascom), RTLS scope, and whether post-install validation and a formal validation report are in scope.

We return a written SOW quote within three business days of a 30-60 minute scoping call after receiving floor plans, a clinical fleet inventory, and a scope description.

No engagement begins without the client signing off on the fixed-fee price first.

Wireless ePHI is governed by 45 CFR 164.312 — Technical Safeguards — which binds five required standards to any network carrying PHI, including the WLAN: Access Control (a)(1), Audit Controls (b), Integrity (c)(1), Person or Entity Authentication (d), and Transmission Security (e)(1).

The Transmission Security standard itself is required; its two implementation specs — Integrity Controls (e)(2)(i) and Encryption (e)(2)(ii) — are addressable under 45 CFR 164.306(d)(3), meaning the entity must implement, document an equivalent measure, or document why encryption is not reasonable and appropriate for the environment.

Our engineering default: WPA3-Enterprise or WPA2-Enterprise 802.1X on every SSID that touches ePHI, with the 164.306(d)(3) decision file attached to the wireless design deliverable.

OCR published the NPRM on December 27, 2024 — the first major Security Rule update since 2013 — and it directly reshapes how clinical networks get designed. Three items matter for wireless and LAN architects.

Network segmentation moves from recommended to required: covered entities and business associates would be required to deploy technical controls that segment their networks. Encryption of ePHI at rest and in transit moves from addressable to required, with limited specified exceptions.

Multi-factor authentication becomes required for systems storing or accessing ePHI, with vulnerability scanning at least every six months and penetration testing at least annually.

Public comment closed March 7, 2025; the rule is not yet final as of 2026-04-22, but designs built today should anticipate these as baseline requirements.

45 CFR 164.312(b) — Audit Controls — requires hardware, software, or procedural mechanisms that record and examine activity in information systems that contain or use ePHI.

On a wireless fabric that means timestamped, tamper-evident logging on the WLC, the APs, and the RADIUS or NAC stack — at minimum MAC address, username, SSID, authentication result, and timestamp.

Retention is governed by 45 CFR 164.316(b)(2)(i): documentation required by the Security Rule must be retained for six years from creation or from the date it was last in effect, whichever is later.

NIST SP 800-66 Revision 2 (February 2024) maps 164.312(b) to the NIST 800-53 AU-family controls, recommending time-stamped tamper-resistant logs exported to a write-once audit store.

Yes — if the device holds unsecured PHI artifacts in running-config. The Breach Notification Rule at 45 CFR 164.400-414 requires notification following a breach of unsecured PHI, meaning PHI that has not been rendered unusable through FIPS-validated encryption or destruction. Breaches affecting 500 or more individuals require notice to HHS and prominent media within 60 days.

That scope reaches WLAN gear: WPA2/3-Enterprise PMKs and PSK fragments, RADIUS shared secrets, local-web-auth pages, and captive-portal logs with patient identifiers are all treatable as sensitive.

Before any AP or WLC goes out for RMA, our process strips plaintext keys, sanitizes running-config, and documents the sanitization against the entity’s network security policy.

Vocera’s Infrastructure Planning Guide mandates -65 dBm minimum signal with coverage from two access points, a +25 dB SNR floor based on a -90 dBm noise floor, and an absolute RSSI never-below floor of -75 dBm at the badge. Roaming policy defaults differ by model: the B3000n roams at policy 2 (SNR below 20 dB), the V5000 at policy 3 (RSSI below -70 dBm).

Encryption is AES-CCMP — badges do not support WEP, TKIP, or SAE.

On 2.4 GHz, Vocera recommends scanning only non-overlapping channels 1, 6, and 11. Every clinical corridor, med room, and patient bay gets surveyed against those numbers before badge deployment.

Cisco’s Wireless IP Phone 8821 Deployment Guide requires a signal of -67 dBm or higher on 5 GHz or 2.4 GHz, with a minimum +25 dB SNR against a -92 dBm noise floor.

The cell edge must be designed to -67 dBm with 20 to 30 percent overlap between adjacent APs at that signal level; critical areas increase overlap to 30 percent or more so at least two APs deliver -67 dBm or better concurrently.

Packet error rate must not exceed 1 percent, and the 8821 must remain associated to an AP for at least three seconds before roaming is evaluated.

ICU, OR, and ED corridors get designed to -65 dBm primary with -67 dBm secondary at 30 percent overlap. DSCP 46 (EF) for SIP media, DSCP 24 (CS3) for signaling.

Yes — all three are required for voice-grade clinical Wi-Fi. 802.11k publishes neighbor reports so a client pre-fetches surrounding AP info and makes faster, smarter roam decisions. 802.11v BSS Transition Management lets the AP send Client Steering frames suggesting a better candidate. 802.11r Fast Transition caches encryption keys across APs; Cisco Meraki documents roam reconnection dropping from 200 ms to under 50 ms with FT enabled.

Vocera’s Common WLAN Settings recommend 802.11k Neighbor Reports plus CCKM, OKC, or 802.11r for credential caching.

Ascom’s Myco 4 interoperability report with Juniper Mist calls FT the optimal roaming mechanism. Every voice and clinical wireless SSID we ship has k, v, and r enabled.

Cisco’s Catalyst Center Healthcare Non-Fabric Validated Profile states that granular network segmentation — SD-Access style — is the preferred method to prevent lateral-movement threats, which is particularly important in healthcare. The 2024 HIPAA Security Rule NPRM proposes mandating segmentation as a required control.

The industry pattern we deploy: a minimum of four SSIDs on separate VLANs — Clinical-Voice (WMM and DSCP for VoWiFi), Medical-Device (ACL-isolated to vendor servers only), Corporate-Staff (802.1X EAP-TLS against AD), and Guest (internet-only with captive portal).

Inter-VLAN ACLs get logged with six-year retention per 45 CFR 164.316(b)(2)(i).

Cisco AutoQoS Fastlane and NBAR2 in the Catalyst Center healthcare profile pre-load the validated queuing profile.

It depends on the model number on the order sheet. Philips IntelliVue MX40 model 865352 supports 802.11a 5 GHz or 802.11b/g 2.4 GHz WLAN as part of the Customer-Supplied Clinical Network spec; it rides the Medical-Device SSID with VLAN isolation.

Models 865350 and 865351 do not — they use the IntelliVue Smart-hopping WMTS Network operating in the 1.4 GHz band with a capacity of up to 1024 devices, using cognitive-radio hopping when interference is detected.

WMTS under FCC Part 95 Subpart H is allocated on 608-614 MHz, 1395-1400 MHz, and 1427-1432 MHz — 14 MHz total on a primary basis.

If biomed orders the WMTS variants, the design requires dedicated WMTS infrastructure, not a Wi-Fi SSID.

FDA finalized “Cybersecurity in Medical Devices: Quality System Considerations and Content of Premarket Submissions” on September 27, 2023. Under Section 524B of the Federal Food, Drug, and Cosmetic Act, sponsors of cyber devices — including 510(k)s, PMAs,

and Humanitarian Device Exemptions — must submit a Software Bill of Materials in marketing applications, a plan to monitor, identify, and address postmarket cybersecurity vulnerabilities and exploits, and commitment to make postmarket updates and patches available.

FDA recommends the Secure Product Development Framework across security risk management, security architecture, and cybersecurity testing.

Network implication: every networked medical device on the clinical VLAN needs a vendor SBOM and patch channel, and the WLAN design must accommodate CVE-driven firmware updates without clinical downtime — staged rollouts with redundancy per IEC 80001.

Yes. IEC 80001-1:2021 — Application of risk management for IT-networks incorporating medical devices, Part 1: Safety, effectiveness and security — specifies general requirements for organizations in the application of risk management before, during, and after the connection of a health IT system within a health IT infrastructure. The 2021 edition is a technical revision of the 2010 first edition, reframing requirements around principles and organizational accountability.

Companion standard IEC 81001-5-1:2021 covers health software security activities across the product life cycle.

Engineering implication: every change to the clinical network — WLC firmware push, AP code upgrade, new SSID, segmentation change, vendor controller migration — requires a formal 80001 risk assessment signed by Healthcare Technology Management and clinical engineering before the change window opens.

Through AAMI TIR69 — Risk management of radio-frequency wireless coexistence for medical devices and systems — which applies to medical devices using RF wireless technology to perform or control a medical function or to communicate medical data. TIR69 references ANSI/USEMCSC C63.27-2021, the American National Standard for Evaluation of Wireless Coexistence, as its FDA-recognized test method; AAMI TIR18:2010 provides companion electromagnetic-compatibility guidance for healthcare facilities.

FDA recognizes both C63.27 and TIR69 in its consensus standards database, which makes them acceptable evidence in 510(k) submissions.

When a new WLAN is deployed near existing telemetry, IV pumps, or ultrasound, HTM should maintain coexistence-test documentation; our survey deliverable flags 2.4 GHz ISM collisions with legacy biomedical devices before cutover.

45 CFR 164.308(a)(1) — the Security Management Process standard — requires policies and procedures to prevent, detect, contain, and correct security violations. Four further standards reach the network team directly. 164.308(a)(3) Workforce Security requires authorization and supervision, workforce clearance, and termination procedures for anyone with ePHI access. 164.308(a)(4) Information Access Management governs access authorization, modification,

and establishment for ePHI systems. 164.308(a)(5) mandates security awareness and training for all workforce members, including network engineers. 164.308(a)(7) Contingency Plan requires Data Backup, Disaster Recovery, and Emergency Mode Operation specs.

Operational implication: RADIUS group membership tied to AD role, automated 802.1X certificate revocation on day-of-termination, and quarterly audit of WLC and Catalyst Center admin accounts.

Effective July 1, 2023, Joint Commission replaced the legacy EM.01.01.01 through EM.04.01.01 standards with new EM.09.01.01 through EM.17.01.01 across Hospital, Critical Access Hospital, Home Care, Ambulatory, Nursing Care,

and Laboratory programs. The Hazards Vulnerability Assessment requires the organization to predict consequences of losing critical infrastructure — information technology, security systems, administrative and vital records. The Continuity of Operations Plan applies to disruptions of four weeks or more affecting critical life or safety technology.

Standard EM.09.01.01 makes leadership responsible for emergency operations plans with IT and network identified as explicit subsystems.

Engineering implication: the HVA scenario for a full WLC outage requires a documented downtime runbook, controller redundancy in active/standby or N+1, out-of-band management path, and paper-downtime procedures for EHR-dependent workflows.

HL7 FHIR R4’s RESTful API specification states that all production exchange of healthcare data should use SSL, and the FHIR Security page references BCP 195 — Best Current Practice 195 — as the authoritative Transport Layer Security guidance. BCP 195 sets the floor at TLS 1.2 with deprecated cipher suites removed.

For web-centric authentication FHIR recommends OAuth, typically via SMART App Launch. SMART App Launch v2.2 client-confidential-asymmetric authentication has the client generate a one-time-use JWT signed with RS384 or ES384, then authenticate to the OAuth token endpoint over TLS.

FHIR also cautions that PHI may appear in search parameters and HTTP logs; logs must be protected as sensitively as the resources themselves, which means reverse-proxy logs with PHI-bearing URLs live in the ePHI-class audit store.

Off empirical PACS throughput — not off a protocol spec number. DICOM PS3.7 — Message Exchange — defines the C-STORE composite object storage service used to push image instances to the archive, along with C-FIND, C-MOVE, C-GET, and C-ECHO query, retrieve, and verification primitives.

PS3.7 specifies how these messages exchange over the communication support services in PS3.8; it does not specify per-modality study size because size is a function of acquisition protocol, not the transport.

Sizing for a CT, MR, or mammography VLAN requires either live capture from the facility PACS or the acquisition-protocol sheet from GE, Philips, or Siemens for the specific scanner.

Imaging modalities belong on a dedicated wired VLAN — not Wi-Fi — for C-STORE traffic.

Yes — if the AP model carries EN 60601 certification. The Cisco Meraki CW9178I datasheet lists EN 60601 certified status under the IEC/EN 60601 medical electrical equipment safety standard family.

The HPE Aruba AP-755 in the 750 Series is certified to EN 60601-1-1 and EN 60601-1-2 for medical device safety and electromagnetic compatibility; Aruba specifies that the AP must connect only to IEC 62368-1 or IEC 60601-1 certified products in the medical environment.

Non-certified enterprise APs are acceptable in back-of-house clinical IT closets but not bedside, imaging suites, OR, or ED bays.

Every bedside or patient-care-area AP we specify gets cross-checked against the vendor datasheet’s 60601 line before the bill of materials ships.

Plan for 802.3bt class 6 — 47 watts per AP at full capability. The Cisco Meraki CW9178I datasheet calls out 802.3bt (Class 6) at 47 W maximum consumption with full 4×4 capability on all bands; on 802.3at, draw falls to 25.5 W with reduced spatial streams in quad-radio mode.

CW9178I uplinks are dual 10 Gbps mGig ports for PoE and link redundancy. Cisco’s CW9176 tri-radio AP publishes an 18 Gbps aggregate frame rate with software-defined flex radio.

HPE Aruba’s 750 Series runs on 48 VDC nominal input (802.3af/at/bt class 3 or higher) with dual 10 Gbps Ethernet.

Every clinical closet feeding patient-care-area APs needs bt-capable switching — a 48-port switch supporting 30 bt APs at 48 W each needs a PoE budget of 1440 W or higher.

A cross-vendor design session before cutover — because the integration is never just SIP. Rauland Responder 5 is installed in thousands of healthcare facilities and more than one million acute-care beds across 40 countries, and it supports direct SIP trunk integration with Cisco wireless handsets without requiring middleware or third-party communication handlers.

GE CARESCAPE B450, B650, and B850 monitors ride MC Network or S/5 Network connectivity with peer-to-peer options, enabling uninterrupted monitoring and data acquisition during patient transfer.

Philips Smart-hopping operates at 1.4 GHz WMTS — not Wi-Fi — and stays isolated from the clinical WLAN.

Every production cutover requires sign-off from HTM, the nurse-call vendor, the monitoring vendor, and clinical engineering against a vendor-specific compatibility matrix. No NDA-gated deployment guide, no cutover.
