Warehouse Network Design for Tilt-Up DCs, 3PLs, and Fulfillment Centers

Timeline depends on scope. A single-building empty-shell DC with complete rack-elevation drawings can be predictively modeled and quoted within three business days of the scoping call. An AP-on-a-Stick validation pass for a 500,000–1,000,000 sq ft DC at operational rack load typically takes three to five days on-site, with an additional week for post-walk analysis and the deliverable package.

Multi-site 3PL engagements or cold-chain facilities requiring temperature-window coordination with the operator’s refrigeration technician typically run three to six weeks from floor plan receipt to final deliverable.

Every engagement is scoped and quoted as a fixed-fee SOW before work begins — the timeline, scope, and deliverables are defined in writing.

We do not bill hourly against an open-ended estimate.

Predictive RF models treat racking as a static volumetric attenuator, and they are reliable for empty-shell construction. Once racking is installed and loaded, the attenuation through the aisle shifts meaningfully with SKU mix — corrugated cartons attenuate differently than palletized appliances, bottled liquids, or bagged pet food — and the same rack section can swing 10–15 dB in aisle-center measurements across a seasonal inventory turnover.

An AP-on-a-Stick pass mounts a production-model AP at the intended deployment height (35–45 ft for high-bay aisle-center) and the Ekahau Sidekick 2 records real RSSI, SNR, and noise floor as the surveyor walks aisle-center and pick-face.

That measurement data overwrites the predictive assumption and prevents procurement of an AP count and antenna BOM that looks correct on paper and fails under operational load.

Voice-directed picking and push-to-talk handsets are more sensitive to roaming delay than data-only clients. The Cisco voice-deploy guidance tightens the weaker-AP roaming trigger by 2 dB — from the data target of ‑67 dBm to ‑65 dBm — so the voice client associates to a stronger AP before the serving AP degrades to the point that the voice session drops packets.

On a warehouse floor running Zebra voice-directed workflows, Vocera Smartbadge, or Spectralink Versity, that tighter threshold is a design constraint, not a preference.

It means the cell overlap requirement rises to 20–25% at the ‑67 dBm contour and the AP count goes up relative to a data-only design in the same square footage.

Source: Cisco Voice Over Wireless LAN Design Guide.

Every engagement is priced as a fixed-fee SOW — we do not bill hourly. Scope variables that drive cost: facility square footage, ceiling height and rack configuration (selective, drive-in, push-back, AS/RS), cold-chain or ambient, scanner and handset fleet count and model mix,

whether AMR or AGV integration is in scope, required survey type (predictive only, AP-on-a-Stick, or combined predictive-plus-validation), and whether post-install validation and a formal validation report are deliverables.

We return a written SOW quote within three business days of the scoping call of receiving floor plans, rack elevations, and a scope description.

Send plans to sales@wifihotshots.com or call (844) 946-8746.

No engagement begins without the client signing off on the fixed-fee price first.

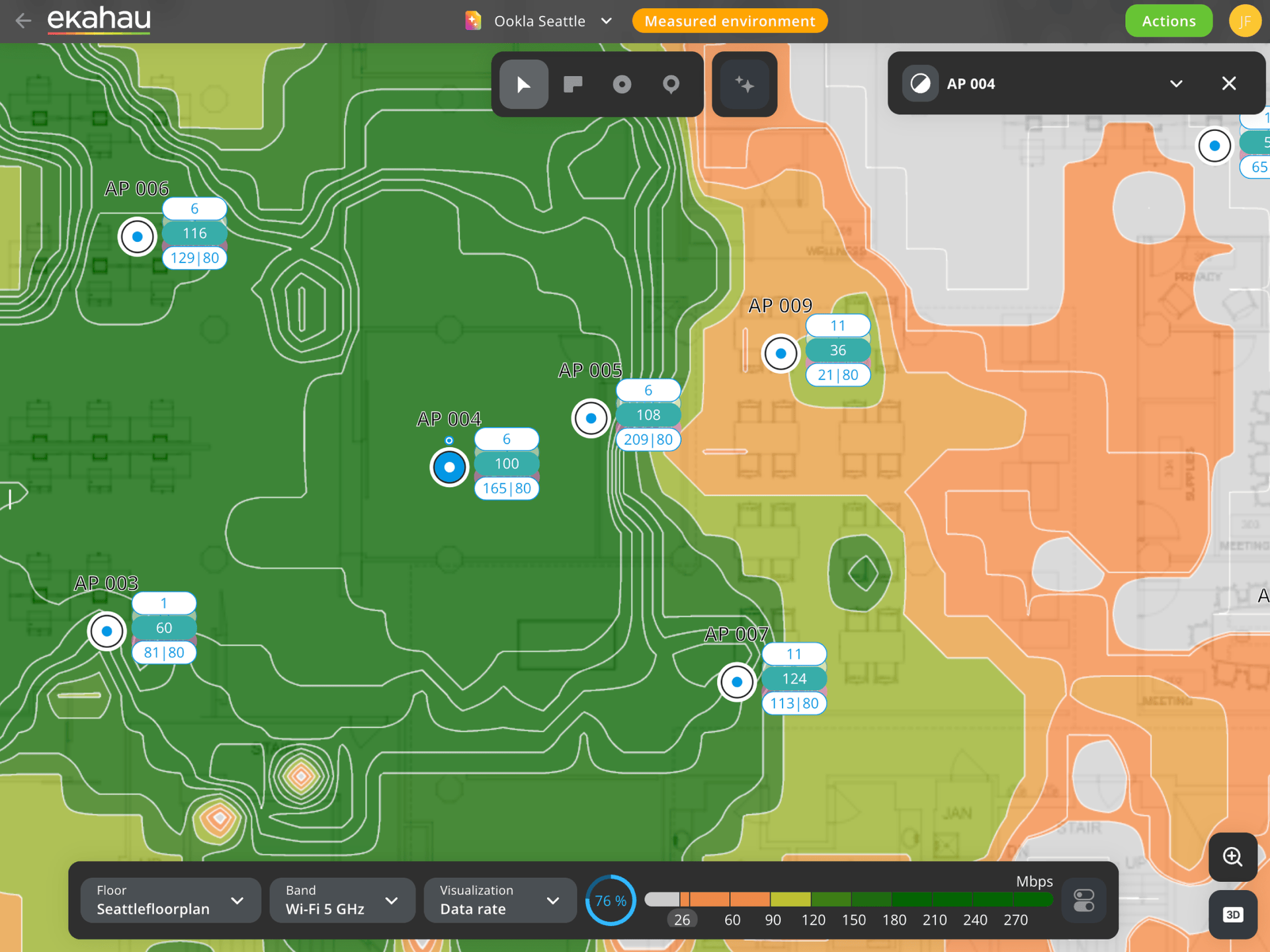

Every engagement produces: the Ekahau project file (.esx) for future re-use; annotated heatmap exports per frequency band (2.4, 5, 6 GHz) per zone at pick-face height showing RSSI, SNR, secondary coverage (802.11k), and co-channel interference;

a vendor-agnostic AP bill of materials with mount type, antenna selection (omnidirectional or directional panel with beamwidth and downtilt), PoE class, and cabling callouts; an installation runbook for the contractor with aisle-center X/Y/Z placement;

and a post-install validation report with aisle-walk passive heatmap, iPerf3 throughput, 802.11r handoff timing, and voice MOS trace data where voice-directed picking is in scope.

The deliverable set is the same regardless of AP vendor — Cisco Catalyst 9800, Meraki MR, Aruba, Juniper Mist, Ruckus, or Extreme.

The documentation belongs to the client and is formatted for a 10-year shelf life.

Yes. Passive survey requires no network access and causes zero disruption to production traffic — the Ekahau Sidekick 2 listens passively and never associates to any SSID. An aisle-by-aisle walk at operational rack load is conducted with a flagger and in coordination with the shift supervisor so the surveyor stays out of active forklift lanes and pick paths.

Active throughput testing and roaming validation require a brief association to a production or test SSID, which does not affect other clients on the network.

Full iPerf3 load testing, which generates several hundred Mbps of synthetic traffic, is scheduled during off-shift or a weekend window if the operator requests it.

We have conducted passive surveys in operating distribution centers, cold-storage facilities, and active AMR fulfillment floors without interrupting pick, pack, or ship operations.

The pre-survey coordination document we send before mobilization identifies which test phases, if any, require an off-shift window.

Wi-Fi 6E is the current mainstream target for new-build DCs; Wi-Fi 7 is appropriate where the client device ecosystem supports it and the MLO latency benefit is a design driver.

On 6 GHz, indoor APs operate in the FCC LPI (Low Power Indoor) class and do not require AFC coordination per FCC Part 15 Subpart E. The 6 GHz band is usable through steel racking at warehouse distances,

but the higher-frequency path loss is greater than 5 GHz and the penetration loss through palletized loads is higher — so the practical per-AP coverage radius on 6 GHz is smaller than 5 GHz, and the AP density rises accordingly.

For new-build DCs targeting 320 MHz channel widths where aisle geometry supports non-interfering reuse, Wi-Fi 6E or Wi-Fi 7 is the correct choice.

For retrofit of an existing 5 GHz design where the scanner fleet is still on Wi-Fi 5 or Wi-Fi 6 dual-band, dropping 6 GHz in as an overlay is a staged decision we scope with the client rather than a default.

The fixed-fee SOW covers the defined scope. If the warehouse survey uncovers something outside that scope — an ERRCS gap requiring a licensed BDA integrator, a structured cabling deficiency that needs remediation before APs can be installed, a refrigeration-system electrical conflict, or a neighbor-tenant channel-plan collision — we document the finding in the validation report with a clear description of the issue and its location.

We then issue a separate change-order estimate for any additional WFHS scope and, where the finding is outside wireless engineering (ERRCS install, electrical work, refrigeration-system coordination), we refer to the appropriate licensed contractor.

The client is never billed above the SOW total without a signed change order first.

That is the operational definition of a fixed-fee engagement.

Above 25 feet the pick-aisle cell becomes a directional problem, not a coverage problem. Cisco’s own deployment guide positions the CW9166D1 and CW9176D1 as the high-ceiling SKUs — the CW9166D1 radiates a 70-degree pattern at 2.4/5 GHz and 60 degrees at 6 GHz, while the CW9176D1 provides 70×70 beamwidth at 5/6 GHz and 80×80 at 2.4 GHz with 7 to 8 dBi peak gain.

Meraki’s Best Practice Design states APs should mount 10-15 feet above the floor; when the hard ceiling exceeds 25 feet, a wall-mount directional deployment is the supported alternative.

Omni APs at 35-foot steel deck waste energy above pallet height and create floor-level nulls between racks.

Our warehouse wireless team specifies azimuth, elevation tilt, and SKU for every AP in the drawing package.

Voice picking tightens every threshold the data designer relaxed. Zebra’s voice BPG mandates a minimum coverage floor of -65 dBm at the cell edge, a 25 dB SNR minimum with the noise floor at or below -90 dBm, at least 19 dB of same-channel separation between co-channel APs,

and 20 percent cell overlap in critical environments. The channel plan is 2.4 GHz restricted to 1/6/11 and 5 GHz restricted to 36/40/44/48/149/153/157/161/165 — non-DFS only.

End-to-end latency stays below 100 ms, packet loss below 1 percent, and channel utilization under 50 percent.

Roaming scans trigger at -65 dBm; 802.11r Fast Transition is the preferred fast-roam method over proprietary CCKM.

Any warehouse running voice-directed picking without those thresholds in the SOW is guessing.

DFS exists to protect radar; it breaks voice. Cisco’s DFS reference states that before transmitting on a DFS channel the AP must listen 60 seconds for radar during the Channel Availability Check. In dense client populations, Cisco’s own guidance says operators should prepare to handle up to four false DFS events per AP radio per day in addition to real radar detections.

When a false event trips, the AP disconnects every 5 GHz client, sends a Channel Switch Announcement, and moves.

Clients experience it as a forced roam mid-transaction. That is why Zebra’s voice channel list is strictly non-DFS — a forklift handset dropping a pick confirmation is an operational cost per false trip.

The CW9166D1 and most indoor Catalyst 9000 series APs are rated -20 degrees C to +50 degrees C per the CW9166D1 installation guide. A freezer below -20 degrees C is outside spec and the AP will eventually fail. Cisco’s industrial SKU families replace the indoor radios for freezer and cold-chain work. The Catalyst IW6300 Heavy Duty is IP67, Class I Div/Zone 2 certified, with a -40 degrees C to +75 degrees C operating range.

The Catalyst IW9167 Heavy Duty uses a rugged cast-aluminum enclosure rated for extreme temperature, water, dust, and hazardous environments.

The IW9165E Rugged covers outdoor and industrial client-adjacent deployments. Our wireless design team specifies the industrial SKU at the freezer door, not the indoor SKU with an enclosure hack.

The CW9166D1 requires 802.3at minimum and 802.3bt for full feature operation; it does not accept 802.3af. At 802.3at (30W) the USB port is disabled. Max power consumption lands between 30W and 40W. The Wi-Fi 7 CW9176 steps up to 802.3bt Class 5 UPOE at 39W for baseline operation and Class 6 at 60W for 320 MHz channels, 4K-QAM, and all radios at full spatial streams.

IEEE 802.3bt was amended in 2018 to deliver up to 90W from the PSE (Type 4 UPOE+).

Typical enterprise cable loss runs 10-15 percent, so a 60W switch budget delivers about 51W at the AP on a long run. Legacy 802.3af/at-only closets will not light up Wi-Fi 7 features — that is a capital line item the CIO must plan for.

A forklift at 8 mph traversing 30-foot pick aisles crosses a cell edge every 2-3 seconds. Without 802.11r FT, every crossing incurs a full 802.1X/EAP reauthentication at 200-300 ms and an audible voice gap. IEEE 802.11r-2008 compresses that handshake into a four-frame Fast BSS Transition exchange completing in under 50 ms. PTK derivation happens inside the Authentication plus Reassociation exchange, with QoS admission piggybacked — no standalone 4-way handshake is needed on roam.

Below 50 ms, voice-directed picking stays audibly clean.

Above 100 ms (the Zebra ceiling) the picker hears artifacts; above 150 ms the session tears down. The Zebra voice BPG mandates 802.11r FT as the preferred fast-roam protocol for exactly this reason.

802.11k Radio Measurement lets the client request a neighbor list containing the BSSID, channel, and operating details of nearby radios. The client stops blind-scanning every channel and works from a pre-built shortlist. 802.11v BSS Transition Management lets the AP send a BTM Request to the client that includes a candidate AP list and, optionally, a Disassociation Imminent bit with a timer measured in beacon intervals.

On the Catalyst 9800 controller, Imminent Disassociation can force-disconnect a client that refuses to roam inside the defined window.

A forklift terminal running 11k plus 11v plus 11r FT transitions on the AP’s schedule — before signal collapses behind a stacked pallet — and completes the roam in sub-50 ms without user-visible artifacts.

Usable, but deploy it where it earns its keep. Pathloss at 6 GHz is roughly 3 dB higher than 5 GHz at the same distance — cells shrink modestly, not fatally.

The bigger factor in a rack-loaded warehouse is that steel racking creates multipath and deep nulls at every band; Cisco’s RF reference puts concrete-with-embedded-metal around 12 dB per wall. 6 GHz suffers more from racking depth than 5 GHz.

The offset: 6 GHz provides 59 by 20 MHz channels in the US versus 25 at 5 GHz, so co-channel contention drops dramatically.

Practical design rule: use 6 GHz for staging, packing, and receiving (open floor, high device density, short range) and rely on 5 GHz non-DFS for deep-aisle picking where penetration and DFS-free reliability matter more.

FCC 6 GHz allocates 1200 MHz across UNII-5/6/7/8 (5.925-7.125 GHz): 59 by 20 MHz channels, 29 by 40 MHz, 14 by 80 MHz, and 7 by 160 MHz. Wi-Fi 7 adds 3 by 320 MHz.

The Wi-Fi Alliance defined 15 Preferred Scanning Channels spaced 80 MHz apart (5, 21, 37, 53, 69, 85, 101, 117, 133, 149, 165, 181, 197, 213, 229). Client devices send probe requests only on PSCs by default — scan time drops from 59 channels to 15, and handheld battery drain drops with it.

Reduced Neighbor Report IEs on 2.4 and 5 GHz beacons advertise co-located 6 GHz radios so tri-band handhelds skip blind scans entirely.

Deploy 6 GHz APs on PSC channels or let RRM pick them; non-PSC channels require RNR for discovery.

Deploy Wi-Fi 7 APs for future-proofing but do not model throughput uplift until the handheld fleet refreshes. Wi-Fi 7 adds 320 MHz channels (6 GHz only), Multi-Link Operation so a single multi-link device can use 5 GHz plus 6 GHz simultaneously, 4K-QAM modulation on supported radios like the CW9176, and preamble puncturing to skip interference-affected sub-channels inside a wide channel.

The warehouse reality check: current Zebra handhelds TC78, TC58, TC53, and VC8300 forklift terminals are Wi-Fi 6 or 6E client silicon — they associate to a Wi-Fi 7 AP but never trigger MLO or 320 MHz. 4K-QAM is unreachable beyond about 3 meters from the AP in real warehouse conditions.

Specify Wi-Fi 7 APs today; plan the handheld refresh in the 2-3 year capex window.

The kit and the method both matter. An Ekahau Sidekick 2 carries four tri-band radios, nine internal 3D antennas, and a spectrum analyzer covering 2,400-7,125 MHz at 20 sweeps/s minimum (50 sweeps/s in high-performance mode), with amplitude range -20 to -92 dBm and 19 kHz frequency resolution.

The stick kit adds a 25-30 foot extendable tripod, the exact AP SKU(s) proposed in the design, battery plus PoE injector, and a grounding cable.

Method: validate cell edge at floor and aisle level, not at ceiling height.

Measure RSSI, SNR, and spectrum with handhelds used in production — a representative TC58 or TC78. Walk every aisle both loaded and empty, because racking RF behavior changes 10-15 dB between the two states. Our site survey team runs the live-stock validation as the default deliverable.

Four checks, measured not assumed. The VC8300 supports 802.11a/b/g/n/ac with 2×2 MU-MIMO (no 802.11ax), operates on 2.4 GHz channels 1-13 and 5 GHz 36-165, and supports PMKID caching, Cisco CCKM, OKC, and 802.11r. Antenna is software-switchable between internal and external;

roof-mount installs require the external antenna in vertical orientation per the Zebra install guide. Power is 10-60 VDC isolated input with an internal UPS delivering a 30-minute minimum backup — the terminal survives a dead forklift battery swap.

Operating range is -30 degrees C to +50 degrees C (freezer-ready models have heated displays and connectors); the shock/vibration rating is MIL-STD 810F and IEC 60721-3-5M3.

Validation: confirm 11r FT enabled on the production SSID, external antenna mode vertical on the roof, survey at cab height not ceiling, and measure aisle-to-aisle roam below 50 ms with a WLAN analyzer.

The TC73 and TC78 are flagship Wi-Fi 6E tri-band handhelds on Qualcomm 6490 octa-core silicon, rated for a 10-foot drop to concrete, 2,000 consecutive tumbles, and IP65 plus IP68 sealing; both also carry 5G and CBRS for carrier and private-LTE integration. The TC53 and TC58 are enterprise-grade Wi-Fi 6E handhelds on the same Qualcomm 6490 generation with 802.11r FT including FT Over-the-DS, an improvement over over-the-air FT.

A pack-out zone with 50-plus handhelds in 5,000 sq ft saturates 5 GHz; 6 GHz’s 59 by 20 MHz channel count almost eliminates co-channel contention.

PSC-aware probing plus Reduced Neighbor Report from the 2.4/5 GHz beacon gets handhelds onto 6 GHz in milliseconds. The older TC21, TC26, TC52/TC57, MC3300, MC9300, and VC8300 are pre-6E silicon — a mixed fleet gets marginal 6 GHz benefit until handhelds refresh.

Capacity rules, not coverage. Meraki’s high-density guidance targets 25 clients per radio and 50 clients per AP. Channel width drops to 20 MHz in high-density zones to maximize non-overlapping channel count and minimize co-channel contention. Minimum basic rate sits at 12 Mbps or higher; 802.11b legacy rates (1/2/5.5 Mbps) are removed to prevent slow clients from consuming disproportionate airtime. Minimum SNR across the coverage area is 25 dB.

Translation: a 5,000 sq ft pack-out with 60 pickers, 20 packing stations, and 10 printers is about 90 clients.

At 50 clients/AP that is 2 APs minimum; at 25 clients/radio with dual-radio operation, 2 APs is the floor. With 6 GHz enabled and TC78 handhelds, clients balance across bands and per-AP density lands below the 25/radio design target.

Different band, shared switch budget. The Impinj R700 runs on PoE or PoE+ (802.3af/at) with full specification supported by 802.3at and reduced features on 802.3af. It carries four monostatic TX/RX antenna ports expandable to 32 antennas via an optional antenna hub, outputs up to +33.0 dBm conducted power at the RF connector, and radiates no more than 36 dBm EIRP per FCC Part 15.247.

Operating frequency is 902-928 MHz FCC (865.6-867.6 MHz ETSI) with GS1 EPCglobal Gen2 v2 and ISO/IEC 18000-63 air interface.

The R700’s UHF band does not interfere with 2.4/5/6 GHz Wi-Fi — the bands are orders of magnitude apart.

The actual failure mode is PoE budget starvation: 20 readers at 15-30W each burn 300-600W of switch budget that the warehouse may have allocated to Wi-Fi 6E and 7 APs.

Read range runs 2-20 meters for passive UHF tags depending on tag quality, antenna gain, reader power, and metal/moisture in the environment.

Coverage design is the traditional warehouse model — one AP per aisle or per 3,000-6,000 sq ft of loaded aisle area, targeting -65 dBm cell edge for voice with 25 dB SNR at floor level. Capacity design drives AP count from concurrent clients per radio, not square footage. A 4,000 sq ft pack-out zone with 80 concurrent clients needs 3-4 APs even though coverage-only math suggests 1.

The transition point is roughly one device per 100 sq ft — typical pack-out, staging, and AMR fleet zones — where capacity governs.

Below that density (deep pick aisle, low-density reserve storage), coverage governs. In coverage zones, cell shape drives design; in capacity zones, add APs regardless of coverage overlap. A drawing package that does not label each zone by design mode is incomplete.

Most controllers ship with 802.11b rates (1, 2, 5.5, 11 Mbps) enabled. A single picker in a weak-signal corner can negotiate down to 1 Mbps and burn 20 times the airtime of a 24 Mbps client for the same payload.

Zebra’s voice BPG is explicit: do not enable 11b legacy rates on 2.4 GHz bands unless required for legacy device support. 5 GHz operates at 802.11a MCS starting at 6/9/12 Mbps, 802.11n/ac MCS 0-9, and 802.11ax MCS 0-11.

Meraki high-density guidance sets the minimum basic rate at 12 Mbps or higher.

Translation for warehouse SSIDs: pack-out and staging run minimum basic rate 12 Mbps with 11b disabled; deep-aisle coverage may allow 6 Mbps on 5 GHz to reach the edge but never drops below 6 Mbps. Voice SSIDs run 5 GHz only, 20 MHz channel width, DTIM 1.

The AP45 carries four 802.11ax radios — 1 by 2.4 GHz at 1148 Mbps max, 1 by 5 GHz at 2400 Mbps, 1 by 6 GHz at 4800 Mbps, and a fourth dedicated scanning radio. The scanning radio handles radio resource management, WIDS/WIPS wireless security, synthetic testing, and client performance measurement without stealing airtime from production radios.

A 16-element vBLE array enables sub-1-meter BLE location without external beacon infrastructure.

PoE requires 802.3bt for full functionality; internal (AP45-US/WW) and external antenna (AP45E-US/WW) variants cover the range of mounting and antenna needs. Operational impact: Mist continuously scans for rogues (common in 3PL multi-tenant shells) without disrupting forklift voice traffic, and vBLE replaces RFID forklift tracking in some use cases without separate beacon capex.

Comparable to Cisco’s Adaptive Radio Management on the Catalyst 9166, except AP45 scanning runs on physically separate silicon rather than time-slicing a production radio.

Inventory density changes RF propagation by 10-15 dB in loaded versus empty aisles — the gap between a predictive Ekahau model and measured behavior. Cisco’s RF reference confirms that attenuation depends on metal, moisture, thickness, and conductivity, so a canned-goods aisle (water plus metal) attenuates very differently from an aisle of cardboard boxes.

Seasonal triggers: a Q4 peak receiving zone stocked wall-to-wall for the first time may lose 10-15 dB of AP-to-client signal versus the Q2 baseline; aisle resets that move high-moisture SKUs overnight change the RF map with them; new rack installs add physical barriers the original model never saw.

Re-validation approach: a mini AP-on-a-Stick sweep in affected zones runs 1-2 days versus 1-2 weeks for a full DC.

Cisco DNA Center, Meraki Dashboard, and Juniper Mist Marvis flag AP cells that lose clients or show retry spikes — the leading indicator of a rack-change RF shift.

Seven components, every time. Floor plan with AP placement markers at exact coordinates, height, azimuth, and elevation tilt — directional APs (CW9166D1/CW9176D1) require azimuth plus or minus 60 degrees and elevation +60/-90 degrees per Cisco. AP BOM at SKU-level detail, because CW9166D1 versus CW9164I versus CW9176I is not interchangeable.

Switch and PoE BOM with PoE class per port (802.3at, 802.3bt Class 5, Class 6) and cable-run length check against the 10-15 percent long-run loss.

Heat map (predictive plus AP-on-a-Stick measured) showing RSSI at cell edge, SNR, and expected capacity at floor level.

Channel plan: 2.4 GHz 1/6/11, 5 GHz non-DFS for voice, 6 GHz PSC channels preferred.

WLAN config matrix: SSIDs, minimum basic rate 12-plus Mbps, 11r FT enabled, 11k/11v enabled, WMM enabled, DTIM 1 on voice, 20 MHz channel width in high density.

Validation plan: post-install RSSI/SNR check, roam time below 50 ms with 11r, capacity load test.
